How-To: Vinyl Wrap Pillars

How-To: Vinyl wrap your pillars

This is a how-to on wrapping your pillars in vinyl. This is by no means the best or only way to do this, just simply the way I did it. I tried using the “wet” method to apply the vinyl but found it to be far more work (and harder to work with) than using the dry method (ironic, I know).

Supplies needed:

At least 4 hours of your time
At least 20”x50” of vinyl (I used matte black -- a perfect match IMO)
A few terry towels
Thin microfiber towel
Hobby knife or blade with handle
Scissors
Ruler
Mail opener (optional)
Two credit cards
A bowl of water mixed with dish soap (degreaser)

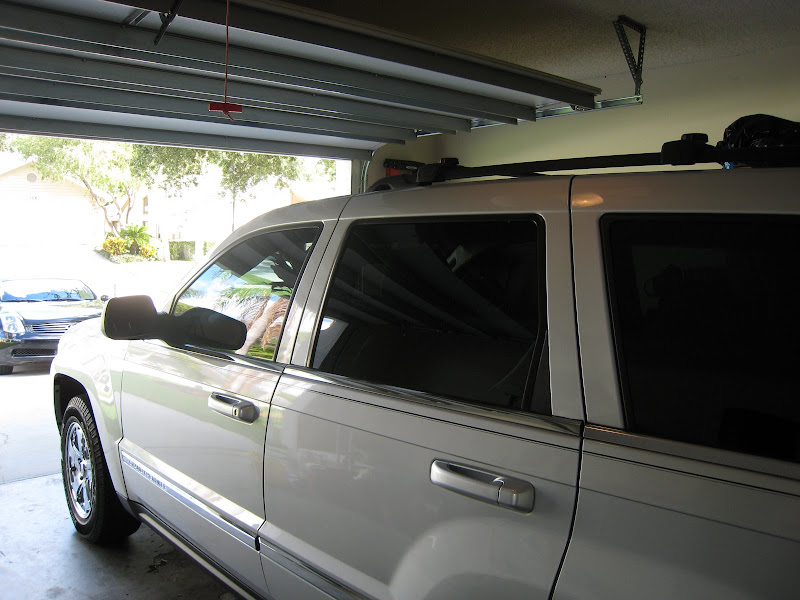

Before pictures







Starting with the forward pillar – pull the window trim away from the pillar.







Using your terry towels and solution – thoroughly clean the pillar and areas around it where excess vinyl will lay.



Time to begin wrapping – Now, be sure you have correctly measured your strip of vinyl. Most strips will be 7-8 inches wide if you are using a rectangular shape, but I found it easier to measure/cut the vinyl diagonally and waste less vinyl.

Front Pillar – Now that you have your piece cut, peel back the backing at the top (factory edge) and place it at the top of the pillar. Be sure you have at least an inch of overlay on each side.

From the top, begin working the vinyl down slowly and being certain you are not leaving any bubbles. If you see a bubble, just simply pull the vinyl back up and remove the bubble, and resume laying from top to bottom.

Using you envelope opener, wedge it behind the window strip molding leaving you an 1/8” opening.

Now use your thin microfiber towel, wrap it around one of your credit cards and work the bottom part of the vinyl down in the opening you have created with the envelope opener. You may have to trim some of the vinyl off the bottom – I tried to get -1/2” of vinyl below the top of the molding.

Next, trim the vinyl that’s overlaying down to -1” and then simply wrap it and firmly press it down.

Go back over the vinyl with your hand and be sure it is smooth. Done. Move to the next pillar.



Here is a pic showing the trim covering the excess vinyl from the face.



For the middle two pillars – pull back the window trim as you did before. You can completely remove the window strip molding. Remove the forward trim, pull the plug out and then pull the trim away. Also remove the little triangle piece, just pulls out from the doors (clips).





Using your terry towels and solution – thoroughly clean the pillar and areas around it where excess vinyl will lay.

Time to begin wrapping – Use the same steps as before.





For the rear pillar – This is a tough pillar to wrap and is mostly a very slow/tedious process. You can’t remove the window trim or the window strip molding. You can remove the trim that borders the door/interior. When it become necessary, you can use the envelope opener to get behind the strip molding.



You’ll want to use the same process as the first pillar – completely lay the front face of the pillar, leaving the overlay to do next. Be sure not to completely lay the vinyl below the strip molding yet.

Once you have the front face of the pillar layed, you’ll want to trim the excess vinyl that is on the side of the window (and rubber trim) to ”.

Now, this is where it gets to be a bit of a bear. Get both credit cards and you microfiber handy, as before, wrap one card with the microfiber towel.

Using your naked credit card lift the top portion of the window trim to allow access for you wrapped credit card.



SLOWLY, work the vinyl underneath the rear window trim with the microfiber wrapped card. It’s kind of a move down motion, but at the same time push in (the vinyl underneath the window trim).

When you get to the bottom, use the microfiber wrapped card and work the corner underneath the window trim and window molding at the same time.

After shots

















Some of the processes were to hard to try and get a picture of, so you'll have to use your imagination or ask me here to further clarify anything.

That's it! As I said before, if you guys have any questions or need any further clarification post your question here.
__________________

__________________
Reply With Quote
  #2
Old 09-22-2009, 03:24 PM
B.P.O.D's Avatar
RockNrolla/JG Founder

My Jeep: 2008 3.7L WK

Join Date: May 2009
Location: Bergen County, NJ / Bushkill, PA
Posts: 14,644
Thanks: 3
Thanked 9 Times in 8 Posts
Rep Power: 16548
B.P.O.D has disabled reputation
Send a message via AIM to B.P.O.D
Re: How-To: Vinyl Wrap Pillars

great write up matt!!! awesome work! truck looks much better!!!! nate you see this????
__________________

__________________
Irfan "Showing off is the fool's idea of glory."
can you beat me in a fight??? http://dreamps.mybrute.com
member of Black, Tri-State, 6 cylinder club 08 Brilliant Black Laredo (JG 3.7L Squad)- k+n 63-1545,magnaflow 10436,mygig(ren), HID's 6k lows, 6k+3k fogs,dual turn leds,led brows,v-led interior leds, cargo led strip, reverse hids, 92 led brake lights, tinted tails,custom powder coated mesh grill, srt sways, 15% tinted windows,illuminated visors,shorty antenna, HH Class III, cargo liner, thule snowboard rack,kayak rack, bike rack

Future mods - color matched side mirrors, black srt reps

My 1-step correction writeup

How To - LED BROW

Reply With Quote
  #3
Old 09-22-2009, 03:26 PM
Long Live the Graphite Ghost


Join Date: May 2009
Posts: 13,316
Thanks: 43
Thanked 126 Times in 108 Posts
Rep Power: 542382
robpp has disabled reputation
Re: How-To: Vinyl Wrap Pillars

Beans for you Matt. Great writeup.
__________________
Reply With Quote
  #4
Old 09-22-2009, 03:29 PM
Megatron's Avatar
Super Moderator

My Jeep: 2007 WK

Join Date: May 2009
Location: Brooklyn, NY
Posts: 12,163
Thanks: 158
Thanked 117 Times in 109 Posts
Rep Power: 2898987
Megatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond repute
Garage
Re: How-To: Vinyl Wrap Pillars

Wow looks good, I would totally have done this IF I had a silver WK.

+rep cuz because of how much that costco card helped ya haha
__________________


PAUL
SEPT2013MEET
APRIL2013MEET
My Garage
My Album
Reply With Quote
  #5
Old 09-22-2009, 03:30 PM
DAVY27's Avatar
Premium Member
Photobucket

Join Date: Jun 2009
Location: City that Never Sleeps
Posts: 8,729
Thanks: 296
Thanked 92 Times in 91 Posts
Rep Power: 1408166
DAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond reputeDAVY27 has a reputation beyond repute
Garage
Send a message via AIM to DAVY27
Re: How-To: Vinyl Wrap Pillars

great writeup! looks good!
__________________

20131110_095620 by davy227, on Flickr
2009 Jeep Grand Cherokee SRT Design
SRT Exterior,Magnaflow 14590 w/ SRT resonators,Injen Powerflow Intake,Flying Ryan Ported TB,Custom Painted Halo Headlights,HID lows/fogs,SRT Springs,Stillens,Gloss Black SRT Reps,Mopar Spoiler, Custom Painted Moldings with Snakeskin green GC letterings, Mopar Stripe,Tinted LED tails/rear fogs, TLS Harness,Switchbacks, Stage6 5" Tips,Custom Door Handle Leds,5% Tint,Altec Plate,HID Reverse,Mopar Front Emblem/ Rear Logo,Powerwire,Interior Leds,RGB LED cupholders,Mygig,Weathertech Mats,LXHarness Leds,Rear Cargo Light Mod,Lockpic V4,GlossBlack Vinyl Interior Pieces
Reply With Quote
  #6
Old 09-22-2009, 03:33 PM
Scottina06's Avatar
JeepGarage Founder
My Jeep: 2014 6.4L SRT8 WK2

Join Date: May 2009
Location: Berea, Kentucky
Posts: 48,153
Thanks: 731
Thanked 701 Times in 563 Posts
Rep Power: 7716632
Scottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond repute
Garage
Re: How-To: Vinyl Wrap Pillars

where did you get the vinyl Matty? I need some 60" wide......
__________________
SCOTT
The HARDER you work...the LUCKIER you are!
2014 REDLINE red Jeep SRT "BLOODIED Edition" 1 of 1
2013 Audi A7 premium plus-phantom black sportback
2012 FIAT 500 Sport-daughters Mopar....LOL


Twitter-The_Jeep_Guy
Instagram-thejeep_guy



Reply With Quote
  #7
Old 09-22-2009, 03:35 PM
Matt's Avatar
Senior Member
My Jeep: 2006 5.7L WK

Join Date: May 2009
Location: 34.076513,-118.429573
Posts: 9,269
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 11498
Matt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond repute
Re: How-To: Vinyl Wrap Pillars

Quote:
Originally Posted by B.P.O.D View Post
great write up matt!!! awesome work! truck looks much better!!!! nate you see this????
Thanks Irf! This mod has been on my to-do list since the first week I got it. I have no idea why it took me so long to do, but I am very happy I did. I think it looks really great on lighter colored vehicles.

Ahh, it just started pouring here!! Had to pull my Jeep in the garage, lol.
__________________
Reply With Quote
  #8
Old 09-22-2009, 03:38 PM
Matt's Avatar
Senior Member
My Jeep: 2006 5.7L WK

Join Date: May 2009
Location: 34.076513,-118.429573
Posts: 9,269
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 11498
Matt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond repute
Re: How-To: Vinyl Wrap Pillars

Quote:
Originally Posted by robpp View Post
Beans for you Matt. Great writeup.
Thanks Rob! When you do yours, feel free to add any advice, tips, or different processes to this thread.

Quote:
Originally Posted by EZY View Post
Wow looks good, I would totally have done this IF I had a silver WK.

+rep cuz because of how much that costco card helped ya haha
haha, Costco FTW!

Quote:
Originally Posted by DAVY27 View Post
great writeup! looks good!
Thanks!

Quote:
Originally Posted by Scottina06 View Post
where did you get the vinyl Matty? I need some 60" wide......
I Google searched and found some random shop about 10 min from me that only does vinyl (commercial and consumer). All the rolls they had were 24" wide and any length you want. The matte black they had is a perfect match, in my opinion, to the black trim on our WK's. This was my only concern with purchasing online.
__________________
Reply With Quote
  #9
Old 09-22-2009, 03:47 PM
White WK Swagga's Avatar
Senior Member
My Jeep: 2009 3.7L WK

Join Date: May 2009
Location: East WishAN*ggaWoods, NY
Posts: 14,384
Thanks: 8
Thanked 5 Times in 5 Posts
Rep Power: 16416
White WK Swagga has a reputation beyond reputeWhite WK Swagga has a reputation beyond reputeWhite WK Swagga has a reputation beyond reputeWhite WK Swagga has a reputation beyond reputeWhite WK Swagga has a reputation beyond reputeWhite WK Swagga has a reputation beyond reputeWhite WK Swagga has a reputation beyond reputeWhite WK Swagga has a reputation beyond reputeWhite WK Swagga has a reputation beyond repute
Re: How-To: Vinyl Wrap Pillars

WHAAAAAAAAAT!!!!!! Irf you already know!!! LOL. Looks AWESOME Matt!!! Props to you!!! Kudos!!!
__________________
The fallen......

09 WK Limited, 3.7 w/ Nav (MYGIG) W/ ipod, Single Kicker 12" CVX sub-ZX750 amp, 20" chrome SRT reps,front & reat SRT sway bars, V-LED interior & license plate, LED cargo light, Dual LED turn bulbs, painted headlight reflector covers, 5k HID lows, 3.5k/5k fogs, K&N Drop in filter, Shorty antenna, Tinted Tails & 3rd brake light, debadged.....
Reply With Quote
  #10
Old 09-22-2009, 03:48 PM
Matt's Avatar
Senior Member
My Jeep: 2006 5.7L WK

Join Date: May 2009
Location: 34.076513,-118.429573
Posts: 9,269
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 11498
Matt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond repute
Re: How-To: Vinyl Wrap Pillars

Quote:
Originally Posted by White WK Swagga View Post
WHAAAAAAAAAT!!!!!! Irf you already know!!! LOL. Looks AWESOME Matt!!! Props to you!!! Kudos!!!
haha, thanks Nate!!
__________________
Reply With Quote
  #11
Old 09-22-2009, 03:55 PM
Long Live the Graphite Ghost


Join Date: May 2009
Posts: 13,316
Thanks: 43
Thanked 126 Times in 108 Posts
Rep Power: 542382
robpp has disabled reputation
Re: How-To: Vinyl Wrap Pillars

Quote:
Originally Posted by Scottina06 View Post
where did you get the vinyl Matty? I need some 60" wide......
my guy says if they seam it right, you cannot see it. 48 width is standard. he says even those dudes wrap your whole car seam it.

said something about cutting both pieces at the same time for perfect match.
__________________
Reply With Quote
  #12
Old 09-22-2009, 04:02 PM
Megatron's Avatar
Super Moderator

My Jeep: 2007 WK

Join Date: May 2009
Location: Brooklyn, NY
Posts: 12,163
Thanks: 158
Thanked 117 Times in 109 Posts
Rep Power: 2898987
Megatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond reputeMegatron has a reputation beyond repute
Garage
Re: How-To: Vinyl Wrap Pillars

Yo matty I see that black G35.. niiice... I'm hoping for one of those or the 37 once the jeep is paid off
