Today's Project - PVC CAI

I was feeling very industrious again today. Picked up a shorty antenna from Advance Auto Parts for $6 and (though unrelated to Jeeps) some guitar wall mounts.




I had read a post about making a PVC intake (http://www.*********.com/forum/f67/h...siable-956199/) and thought I'd give it a go. Figured if nothing else it could be a temporary swap until I can afford a K&N if this one's not up to par. I already had some paint and a 90 degree elbow.



3'' x 2' PVC pipe - $4
PVC cement - $6
45 degree elbow - $3
Spectre Intake Filter - $25
Spectre Coupler - $8

Total - $46

I plan to remove the air box and run the pipe straight to the throttle body using the silicone coupler.

Pictures and a how to guide will be included as they come along
__________________

__________________
Nick, 18 and learning - 06 WK, 3.7L V6 Laredo

4" Superlift, 33x12.50 Toyo Open Country Mud Terrains on 18" KMC Rockstars without center caps, red interior LEDs, 10k HID headlights, Thrush Welded Muffler, custom PVC CAI, power wire, ported/polish throttle body, Hunter brushguard, shorty antenna, Rola roof basket
Reply With Quote
  #2
Old 01-27-2010, 05:33 PM
Scottina06's Avatar
JeepGarage Founder
My Jeep: 2014 6.4L SRT8 WK2

Join Date: May 2009
Location: Berea, Kentucky
Posts: 49,400
Thanks: 876
Thanked 1,049 Times in 724 Posts
Rep Power: 7718319
Scottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond reputeScottina06 has a reputation beyond repute
Garage
Re: Today's Project - PVC CAI

theres several PVC intake how to's on here bro...but we welcome yours for the 3.7 V6.
__________________

__________________
SCOTT
The HARDER you work...the LUCKIER you are!
2014 REDLINE red Jeep SRT "BLOODIED\BlackOps CFR Edition" 1 of 1
2013 JKU Wrangler 10A-stormtrooper'ed, JW Speaker and more!
Previous JEEP rides-
2013 Jeep Grand Cherokee SRT-deep cherry
2006 Jeep Grand Cherokee Laredo-inferno red



Twitter-The_Jeep_Guy
Instagram-thejeep_guy

Reply With Quote
  #3
Old 01-27-2010, 06:55 PM
Matt's Avatar
Senior Member
My Jeep: 2006 5.7L WK

Join Date: May 2009
Location: 34.076513,-118.429573
Posts: 9,269
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 11682
Matt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond repute
Re: Today's Project - PVC CAI

I have a link in my sig - that thread also links to another one (in the OP).

How are you planning on mounting to the TB?

Feel free to ask any questions!
__________________
Reply With Quote
  #4
Old 01-27-2010, 07:25 PM
GCL06's Avatar
Member

Join Date: Dec 2009
Location: Charlotte North Carolina
Posts: 644
Thanks: 0
Thanked 2 Times in 2 Posts
Rep Power: 2455
GCL06 has a reputation beyond reputeGCL06 has a reputation beyond repute
Re: Today's Project - PVC CAI

If a mod could move this to Performance that'd be great. Accidentally put it here >.<

I cut a piece of the stock intake tubing where it connected to the air box and stuck it on the end of the PVC pipe. Put some duct tape around it and used a lighter to melt it air tight. Then just going to tighten the clamp to the TB.

So far its good! Did a quick sound test and like it. Letting the PVC cement dry then back to work. Think I'll have to remove the piping to paint it tomorrow though - need the Jeep to get to school haha
__________________
Nick, 18 and learning - 06 WK, 3.7L V6 Laredo

4" Superlift, 33x12.50 Toyo Open Country Mud Terrains on 18" KMC Rockstars without center caps, red interior LEDs, 10k HID headlights, Thrush Welded Muffler, custom PVC CAI, power wire, ported/polish throttle body, Hunter brushguard, shorty antenna, Rola roof basket
Reply With Quote
  #5
Old 01-27-2010, 09:07 PM
GCL06's Avatar
Member

Join Date: Dec 2009
Location: Charlotte North Carolina
Posts: 644
Thanks: 0
Thanked 2 Times in 2 Posts
Rep Power: 2455
GCL06 has a reputation beyond reputeGCL06 has a reputation beyond repute
Re: Today's Project - PVC CAI

Success! Got it clamped on, air sensor in the hole, supported - just need to paint it tomorrow!

Took it for a test drive and this things awesome! Instant difference! No more lag time between pushing on the gas and feeling the Gs, just sucks my ass back in the seat. Sounds great too. Noticeable difference in power.

Going to be resetting my EVIC to see what kind of mileage improvements I'm getting. I've been at 14.2 over the past 1.5k around town, to and from school, very little highway mileage.

Now to work on the how-to.
__________________
Nick, 18 and learning - 06 WK, 3.7L V6 Laredo

4" Superlift, 33x12.50 Toyo Open Country Mud Terrains on 18" KMC Rockstars without center caps, red interior LEDs, 10k HID headlights, Thrush Welded Muffler, custom PVC CAI, power wire, ported/polish throttle body, Hunter brushguard, shorty antenna, Rola roof basket
Reply With Quote
  #6
Old 01-27-2010, 09:10 PM
Matt's Avatar
Senior Member
My Jeep: 2006 5.7L WK

Join Date: May 2009
Location: 34.076513,-118.429573
Posts: 9,269
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 11682
Matt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond repute
Re: Today's Project - PVC CAI

Cool. Pics?

It seems I get better gas mileage than most of the 3.7l guys, LOL.
__________________
Reply With Quote
  #7
Old 01-27-2010, 09:15 PM
mon_21's Avatar
Senior Member

Join Date: Jun 2009
Location: Chantilly, Virginia
Posts: 1,165
Thanks: 1
Thanked 11 Times in 8 Posts
Rep Power: 69132
mon_21 has a reputation beyond reputemon_21 has a reputation beyond reputemon_21 has a reputation beyond reputemon_21 has a reputation beyond reputemon_21 has a reputation beyond reputemon_21 has a reputation beyond reputemon_21 has a reputation beyond reputemon_21 has a reputation beyond reputemon_21 has a reputation beyond reputemon_21 has a reputation beyond reputemon_21 has a reputation beyond repute
Re: Today's Project - PVC CAI

oooohh I remember those pvc pipes....lol
__________________
[SIGPIC][/SIGPIC]
Reply With Quote
  #8
Old 01-27-2010, 09:18 PM
LTrainGC's Avatar
Senior Member
My Jeep: 2013 5.7L WK2

Join Date: May 2009
Location: St. Petersburg, FL
Posts: 2,202
Thanks: 0
Thanked 4 Times in 4 Posts
Rep Power: 4250
LTrainGC has a reputation beyond reputeLTrainGC has a reputation beyond reputeLTrainGC has a reputation beyond reputeLTrainGC has a reputation beyond repute
Re: Today's Project - PVC CAI

Jesus 14.2 around town with the 3.7? I get that with the Hemi.
__________________
2013 WK2 Overland HEMI 4x4
Bright White / New Saddle
Reply With Quote
  #9
Old 01-27-2010, 09:19 PM
Matt's Avatar
Senior Member
My Jeep: 2006 5.7L WK

Join Date: May 2009
Location: 34.076513,-118.429573
Posts: 9,269
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 11682
Matt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond reputeMatt has a reputation beyond repute
Re: Today's Project - PVC CAI

Quote:
Originally Posted by LTrainGC View Post
Jesus 14.2 around town with the 3.7? I get that with the Hemi.
I'm at 15.8, LOL. And I do enjoy some spirited driving here and there
__________________
Reply With Quote
  #10
Old 01-27-2010, 09:36 PM
GCL06's Avatar
Member

Join Date: Dec 2009
Location: Charlotte North Carolina
Posts: 644
Thanks: 0
Thanked 2 Times in 2 Posts
Rep Power: 2455
GCL06 has a reputation beyond reputeGCL06 has a reputation beyond repute
Re: Today's Project - PVC CAI

How To Build a PVC Intake for a 3.7L V6 Grand Cherokee

Parts
- About 2' of 3'' diameter PVC pipe
- 1 45˚ elbow for 3'' pipe
- 1 90˚ elbow for 3'' pipe
- High Flow Intake Filter (I used Spectre)
- Duct Tape
- PVC Cement

In total it cost me right around $50 to make!

Tools
- Saw to cut PVC pipe and stock hose coupler
- 5/32 alan wrench (best if on an extended screwdriver)
- Flat head screwdriver to remove the air box
- Scissors to cut tape
- Drill bit to drill the air intake sensor hole
- Lighter to melt the duct tape air tight
- Sharpie


Started by removing the stock intake hose. Just loosen the clamps on both ends.


Then removed the air intake sensor (correct term?). Twist and pull out.


Then loosened the clamp on the throttle body behind the air box.


Used a 5/32 alan wrench to get the right side of the air box off. Very tight spot - recommend using an extended screwdriver bit as I had to buy one anyways to reach the left side.

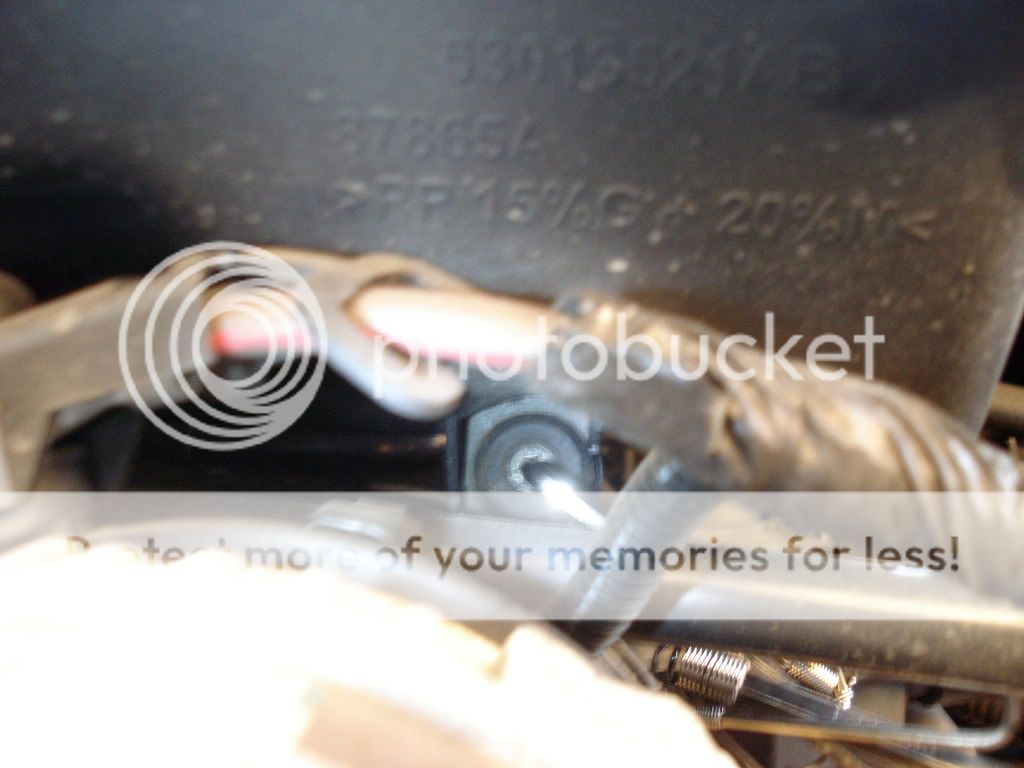

Right:

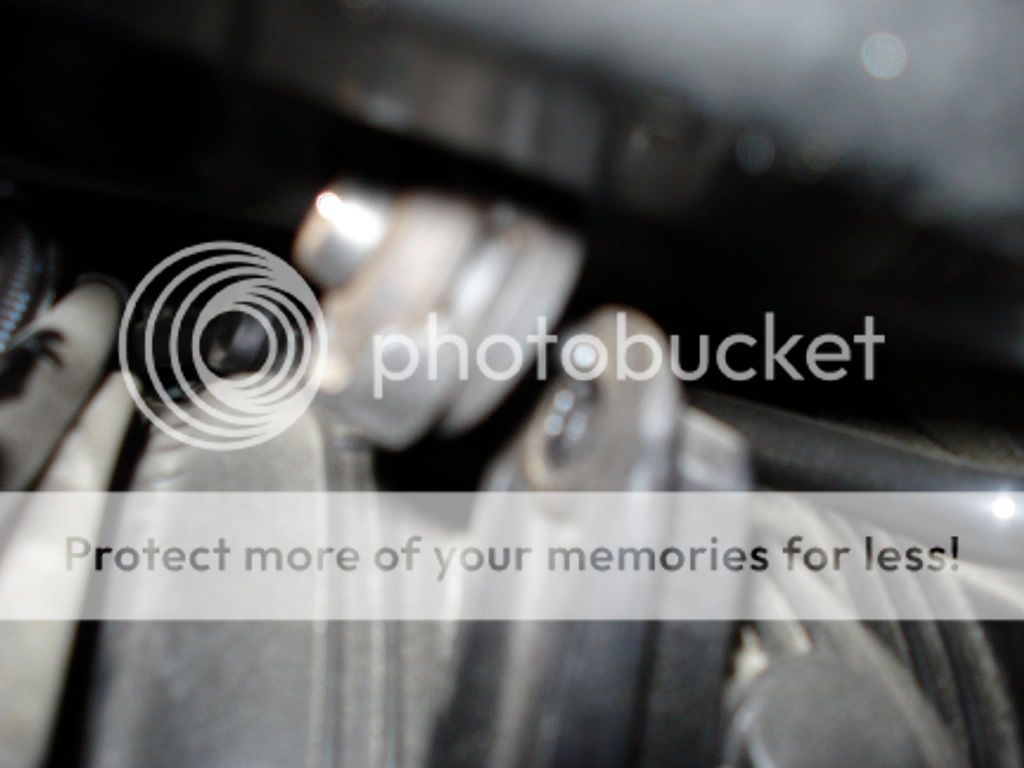

Right:

Left:


Once the clamps and both screws are removed the air box may be removed. Just had to shift it around different ways until it squeezed out.


Remove the top of the stock filter box. Pull off the hose.


Tested the unfinished piping and filter to get an idea of placement and sound.


Had to cut 5 inches off the end of the 2' tube.


Cut the end of the stock intake hose to use as a coupler for the elbow to the throttle body. Used duct tape to connect the coupler to the pipe. Used a lighter to melt the tape to an airtight seal.


Test fitted the pipe. Used the 5'' piece cut off earlier to connect the 45˚ elbow to the 90˚ elbow which will connect to the throttle body via the coupler made from the stock hose.


Once I found the correct angle for the pieces to connect I used a sharpie to draw guidance lines. Then used PVC cement to stick all the pieces together.


Drilled a hole for the air intake sensor to fit in. Once finished drilling I used a Swiffer cloth on the end of a pole to clean out the inside of the pipe, then blew it out with a shopvac and vacuumed after that. Don't want any shavings getting into the engine.


By now it is obvious - this thing is ghetto rigged. To top it all off I duct taped a sponge up and zip-tied it in place to support the pipe.


A view of the pipe. 90˚ elbow with the coupler on the end, to the 5'' straight pipe, to the 45˚ elbow, to the remaining straight pipe (had to cut off more to get it to fit right. Ended up protruding from the 45˚ 8 inches).


Installed it. Tightened the clamp to the throttle body and the one on the filter. Plugged the air intake sensor into the drilled hole. Made sure everything was snug and took it for a test run! Runs great! Instant reaction when I push on the gas. Much quicker acceleration. Definitely feel a noticeable difference. Will be keeping an eye on the MPG changes.


I plan to remove the pipe to spray paint it as soon as I get the chance.
__________________
Nick, 18 and learning - 06 WK, 3.7L V6 Laredo

4" Superlift, 33x12.50 Toyo Open Country Mud Terrains on 18" KMC Rockstars without center caps, red interior LEDs, 10k HID headlights, Thrush Welded Muffler, custom PVC CAI, power wire, ported/polish throttle body, Hunter brushguard, shorty antenna, Rola roof basket
Reply With Quote
  #11
Old 01-27-2010, 09:38 PM
GCL06's Avatar
Member

Join Date: Dec 2009
Location: Charlotte North Carolina
Posts: 644
Thanks: 0
Thanked 2 Times in 2 Posts
Rep Power: 2455
GCL06 has a reputation beyond reputeGCL06 has a reputation beyond repute
Re: Today's Project - PVC CAI

Quote:
Originally Posted by LTrainGC View Post
Jesus 14.2 around town with the 3.7? I get that with the Hemi.
Sad isn't it! The 31s don't help. Nor does the lead foot. Nor does traffic and traffic lights and long ass lines in the school parking lot.
__________________
Nick, 18 and learning - 06 WK, 3.7L V6 Laredo

4" Superlift, 33x12.50 Toyo Open Country Mud Terrains on 18" KMC Rockstars without center caps, red interior LEDs, 10k HID headlights, Thrush Welded Muffler, custom PVC CAI, power wire, ported/polish throttle body, Hunter brushguard, shorty antenna, Rola roof basket
Reply With Quote
  #12
Old 01-27-2010, 09:38 PM
GCL06's Avatar
Member

Join Date: Dec 2009
Location: Charlotte North Carolina
Posts: 644
Thanks: 0
Thanked 2 Times in 2 Posts
Rep Power: 2455
GCL06 has a reputation beyond reputeGCL06 has a reputation beyond repute
Re: Today's Project - PVC CAI

I'll record a video of the intake tomorrow and post a link here.
__________________

__________________
Nick, 18 and learning - 06 WK, 3.7L V6 Laredo

4" Superlift, 33x12.50 Toyo Open Country Mud Terrains on 18" KMC Rockstars without center caps, red interior LEDs, 10k HID headlights, Thrush Welded Muffler, custom PVC CAI, power wire, ported/polish throttle body, Hunter brushguard, shorty antenna, Rola roof basket
